Flash Steam Recovery, Energy Savings and Payback Calculator

Related Calculators

Table of contents

• How to use
• Common mistakes
• Definitions
• Methodology
• Limitations & assumptions
• Sources

Flash steam: Steam that forms when hot condensate drops from a higher pressure to a lower pressure.

psig: Gauge pressure, measured above local atmospheric pressure.

psia: Absolute pressure, measured from a vacuum. Steam-property calculations use absolute pressure.

Flash fraction: The share of inlet condensate estimated to become steam after the pressure drop. It is shown as "Condensate flashed to steam."

Usable low-pressure steam demand: The steam load, in lb/hr, that can accept recovered flash steam during the same operating hours.

Marginal steam cost: The extra cost avoided when the plant produces or buys 1,000 fewer lb of steam. It excludes costs that do not change with steam use.

Simple payback: Net installed project cost divided by positive estimated net annual savings. It does not include financing, taxes, or the time value of money.

Saturated-water enthalpy: Heat content of water or steam at its boiling condition for a given pressure. The flash-fraction calculation uses saturated-water properties. [1]

Mistake: Entering a gauge reading while "Pressure readings use" is set to absolute pressure.
Fix: Choose Gauge pressure (psig) for ordinary plant gauge readings, or enter psia only when the source explicitly says absolute.

Mistake: Using total low-pressure header flow for "Usable low-pressure steam demand" when much of that load is not available at the same time.
Fix: Enter the simultaneous load that can actually accept recovered flash steam during the stated Operating time.

Mistake: Treating "Available flash steam before the demand limit" as steam that always creates savings.
Fix: Use "Usable recovered flash steam" for the savings estimate and review "Flash steam above usable demand" for unvalued potential.

Mistake: Putting a fixed monthly utility charge into "Avoided steam cost".
Fix: Enter a marginal, usage-driven cost per 1,000 lb of steam, not a charge that stays the same when steam use changes.

Mistake: Adding yearly service expense to "Installed project cost ($)".
Fix: Put one-time equipment, piping, controls, labor, and engineering in Installed project cost, then use "Added annual maintenance cost ($/yr)" for recurring expense.

Mistake: Writing a malformed grouped number such as 1,01 for "Condensate flow".
Fix: Use commas only for groups of three digits, such as 10,000, and use a decimal point for decimal values.

• The estimate assumes the inlet stream is saturated liquid condensate at the entered inlet pressure. Subcooled condensate or a two-phase inlet stream can produce a different flash amount.
• The model treats throttling as adiabatic and neglects kinetic and potential energy changes.
• Usable recovery is limited by the entered "Usable low-pressure steam demand." A demand trend that does not overlap with condensate flow can overstate savings.
• "Avoided steam cost" should be a site-specific marginal rate. Fuel contracts, boiler efficiency, water treatment, purchased-steam terms, and fixed charges can change actual savings.
• Simple payback uses current annual savings and a one-time net installed project cost. It excludes financing, taxes, price escalation, downtime, depreciation, and discounting.
• This is not a flash-vessel sizing, pressure-relief sizing, piping design, controls design, or safety-compliance calculation.
• Gauge-pressure conversion uses the editable 14.696 psia sea-level atmospheric-pressure default. Local atmospheric pressure can matter when a close estimate is needed.

Flash-steam calculation

The calculator first converts condensate flow to lb/hr. For gauge readings, it adds local atmospheric pressure to both entered pressures. It then uses saturated-water properties at the inlet and flash absolute pressures to estimate the fraction of condensate that flashes. The property method follows the water and steam reference data used for this calculation. [1]

flash fraction = (inlet liquid enthalpy - flash-pressure liquid enthalpy) / flash-pressure evaporation enthalpy

available flash steam = condensate flow in lb/hr * flash fraction

Demand limit and savings

Generated flash steam only produces value if a low-pressure header or process can use it. The calculator uses the smaller of available flash steam and entered usable demand, consistent with a recovery screening approach that limits recovery to the available load. [2]

usable recovered steam = smaller of available flash steam and usable low-pressure steam demand

annual usable steam in 1,000 lb/yr = usable recovered steam * operating time / 1000

net annual savings = annual usable steam * avoided steam cost - added annual maintenance cost

Payback

Project incentive reduces the initial cost but does not increase annual savings. If net installed cost is positive and net annual savings is positive, simple payback is calculated in years and months. If annual savings is zero or negative, payback is unavailable. If incentive equals or exceeds installed cost, payback is 0.

net installed cost = installed project cost - project incentive

simple payback in years = net installed cost / net annual savings

Worked example

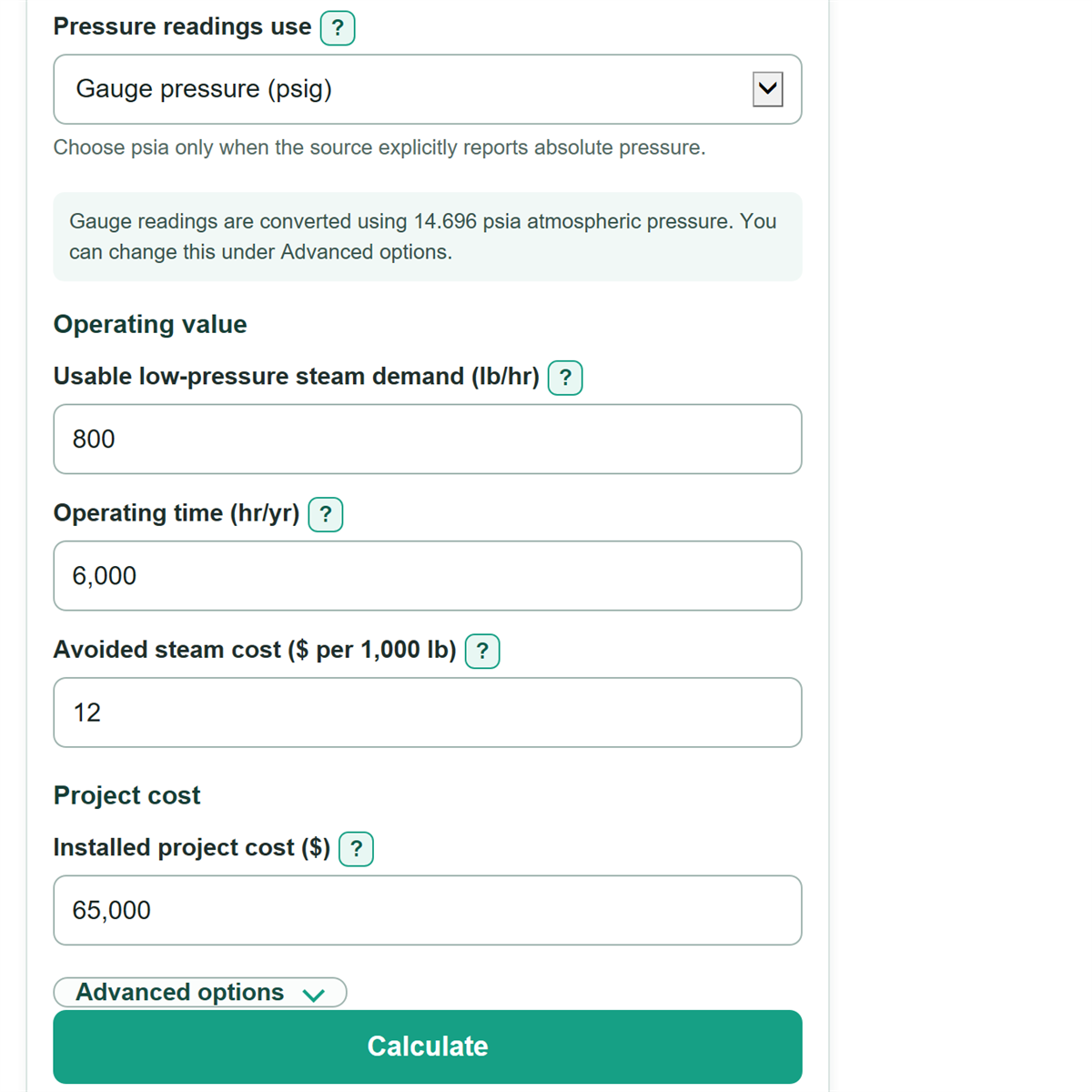

With 10,000 lb/hr of condensate at 100 psia flashing to 20 psia, the calculated flash fraction is about 10.66%, or about 1,066 lb/hr available flash steam. If usable demand is 800 lb/hr for 6,000 hr/yr and avoided steam cost is $12 per 1,000 lb, gross annual avoided-steam value is $57,600. With $2,000 per year of added maintenance, estimated net annual savings is $55,600.

Calculation conditions

The pressure drop must be from a higher inlet absolute pressure to a lower flash absolute pressure. The calculator rejects unsupported property pressures, negative entries, malformed numbers, and operating time above 8,760 hr/yr. It preserves negative net savings or net installed cost instead of changing them to zero.
