Gage R&R: Estimated measurement-system variation. It combines equipment repeatability and operator reproducibility.

Repeatability: Variation when the same operator repeatedly measures the same part under the study conditions.

Reproducibility: Variation associated with different operators, including retained part-by-operator interaction in this calculator.

Part-to-part variation: Estimated real measurement differences among the parts included in the study.

Balanced crossed study: A study where every operator measures every same part the same number of times. This calculator requires at least two parts, two operators, and two trials per part-operator pair.

Part-by-operator interaction p-value: A test result used with the Interaction decision level to decide whether interaction stays separate or is pooled with repeatability.

Study variation: An estimated standard deviation multiplied by the selected Study variation width (number of standard deviations), usually 6.

Number of distinct categories: An estimate of how many part groups the measurement system can separate, calculated with 1.41 times part-to-part standard deviation divided by total Gage R&R standard deviation. [2]

Mistake: Mixing inch readings with mm limits under Study unit.
Fix: Convert all source values first, then enter one shared unit and use it for every Study measurements row and limit.

Mistake: Giving one operator fewer trials in Study measurements.
Fix: Add or remove rows so every part and operator pair has the same number of unique trial labels.

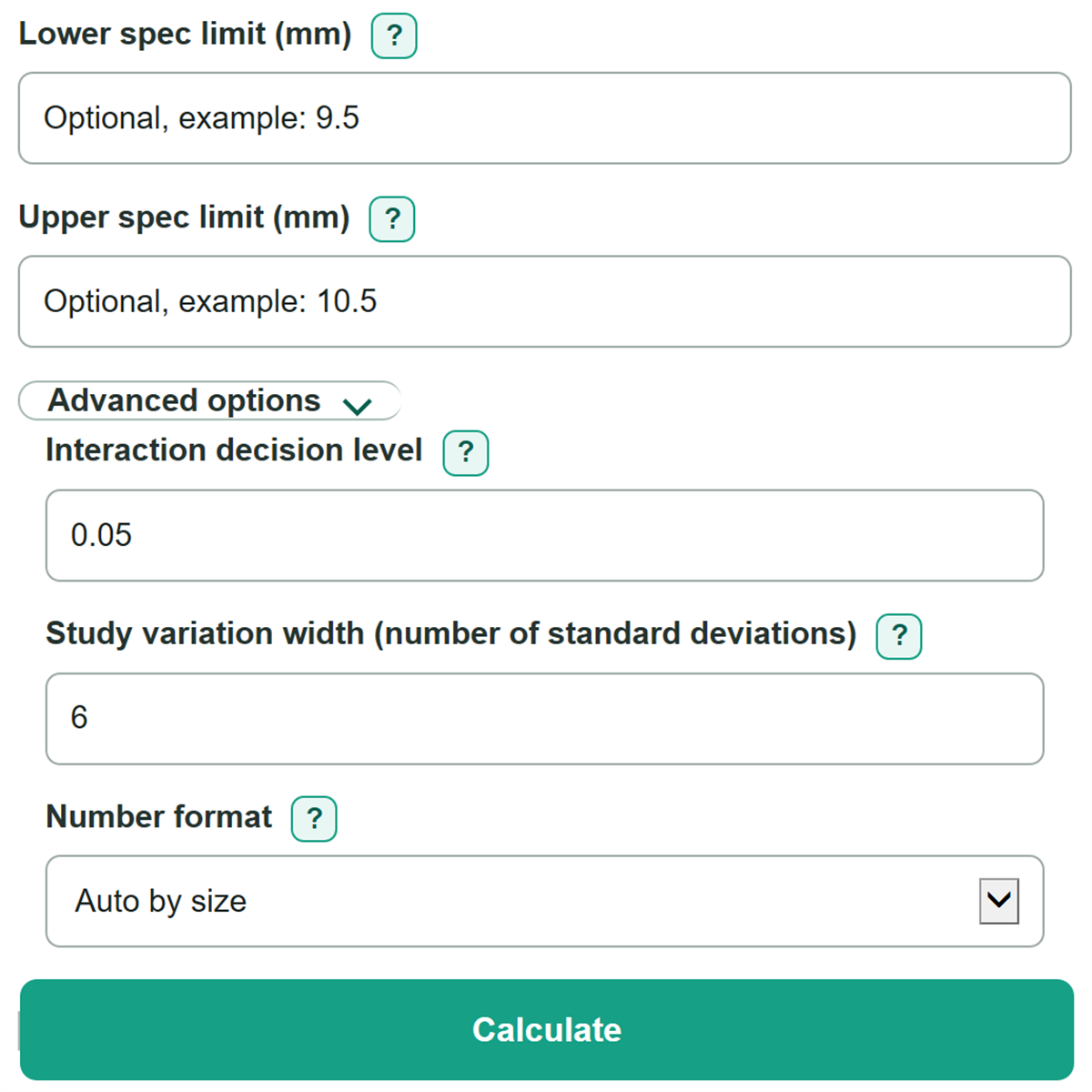

Mistake: Entering only a Lower spec limit (same unit as readings).
Fix: Enter both limits or clear both fields; percent of tolerance needs a complete tolerance range.

Mistake: Reversing the two specification limits.
Fix: Make Upper spec limit (same unit as readings) greater than Lower spec limit (same unit as readings).

Mistake: Treating Total Gage R&R as percent of study variation and Total Gage R&R as percent of tolerance as the same test.
Fix: Use percent of study variation to compare measurement variation with variation in these parts, and percent of tolerance to compare it with the drawing range.

Mistake: Using a crossed study for parts that are destroyed during testing.
Fix: Do not use these Study measurements for a crossed analysis unless every operator measured the same physical parts; use a suitable nested study design instead.

• This calculator is only for numeric, balanced crossed studies where every operator measures the same physical parts. It is not for pass-fail results, visual ratings, destructive testing, or nested designs.
• The estimates describe the operators, equipment, parts, fixtures, environment, and measurement procedure represented in the entered study. A changed setup can produce different results.
• Percent of study variation depends on how different the included parts are. A narrow part range can make measurement variation look like a larger percentage.
• Percent of tolerance is calculated only when both specification limits are entered in the same Study unit as the readings. It does not change the ANOVA variance estimates.
• Negative method-of-moments variance estimates are set to zero. This is a calculation boundary, not proof that the real source of variation is exactly zero.
• The common guideline category is a screening aid. Customer requirements, product risk, and internal quality procedures can require a different decision.

Balanced crossed ANOVA

The calculator groups each numeric observation by part, operator, and trial. It first checks that every part-operator pair has the same number of trials and that trial labels are unique within that pair. It then separates variation into part, operator, part-by-operator interaction, and repeatability error. This follows the usual purpose of a Gage R&R study: separating measurement variation from variation among parts. [1]

part_ss = operators * trials * sum((part_mean - grand_mean)^2)

operator_ss = parts * trials * sum((operator_mean - grand_mean)^2)

interaction_ss = trials * sum((cell_mean - part_mean - operator_mean + grand_mean)^2)

repeatability_ss = sum((measurement - cell_mean)^2)

Interaction treatment

The calculator compares the part-by-operator interaction p-value with the Interaction decision level. If the p-value is at or below that level, interaction remains a separate variance component. If it is larger, interaction is pooled with repeatability error. Negative variance-component estimates from the ANOVA method are reported as zero.

study_variation = sigma_multiplier * sqrt(estimated_variance)

total_gage_rr_percent_study = 100 * sqrt(total_gage_rr_variance) / sqrt(total_variance)

number_distinct_categories = floor(1.41 * sqrt(part_variance) / sqrt(total_gage_rr_variance))

Tolerance comparison

When both specification limits are present, full tolerance is their difference. The calculator divides total Gage R&R study variation by that positive width and multiplies by 100.

full_tolerance = upper_spec_limit - lower_spec_limit

percent_tolerance = 100 * total_gage_rr_study_variation / full_tolerance

Mini-example: if the estimated total Gage R&R study variation is 8.49 mm and the limits are 0 mm and 30 mm, full tolerance is 30 mm and percent of tolerance is about 28.3%.

Interpretation boundaries

The common guideline category uses total Gage R&R as percent of study variation: 10% or less, over 10% through 30%, and over 30%. These are common screening bands, not automatic approval rules. [2]
