Lumens: The amount of light made by a bulb or fixture. Use lumens, not watts, to compare brightness.

Foot-candles: Light reaching each square foot of closet floor or shelf area. One foot-candle means 1 lumen per square foot.

Extra light allowance: Added light for shadows, dark walls, deep shelves, dirt, aging, and imperfect fixture placement.

Installed light output: The total lumens from the whole-number fixture count the calculator recommends.

Estimated brightness in the closet: The estimated foot-candles after the same light allowance is applied back to the installed lumens.

Clearance: The measured space from the light or lens to stored clothes, shelves, boxes, or other items.

kWh: Kilowatt-hour, the billing unit for electricity. A 1000 watt load running for 1 hour uses 1 kWh.

Mistake: Using watts in Lumens from each fixture.
Fix: Enter the lumen rating from the package in Lumens from each fixture; watts belong in Watts used by each fixture.

Mistake: Measuring outside wall dimensions for Closet length (feet) or Closet width (feet).
Fix: Measure the inside usable closet area so Closet area is not too large.

Mistake: Leaving Extra light allowance (percent) at 0 for dark shelves, deep storage, or shadowy corners.
Fix: Increase Extra light allowance (percent) when the closet has dark finishes, packed clothing, or fixtures that do not spread light evenly.

Mistake: Picking Quick storage as the Brightness goal for a closet where you choose outfits every day.
Fix: Use Daily closet, Walk-in dressing area, or Color matching or detail work when you need more useful light.

Mistake: Entering Distance to stored items (inches) without choosing Fixture type for clearance check.
Fix: Select the fixture type first, then enter the measured Distance to stored items (inches).

Mistake: Using Electricity price ($ per kWh) without entering Watts used by each fixture.
Fix: Enter Watts used by each fixture, Use time (hours per day), and Electricity price ($ per kWh) to see Estimated yearly energy cost.

• The lumen result is a planning estimate, not a measured lighting design. Real brightness changes with fixture beam spread, mounting height, shelf layout, wall color, doors, and shadows.
• The Brightness goal targets are practical closet planning values. They are not a code requirement and are not a substitute for a professional lighting plan.
• Closet area uses length times width. Very deep shelves, stacked boxes, mirrors, and vertical storage may need extra task lighting even if the floor-area estimate looks bright enough.
• Extra light allowance is applied as a simple percentage. It does not model exact lamp aging, dirt buildup, or fixture photometry.
• The clearance check is a basic screening check for the selected Fixture type for clearance check. Local electrical code, fixture listing, and inspector decisions can be stricter.
• Open bulb or pendant fixture choices are treated as unsuitable for a clothes-closet clearance plan in the calculator output.
• Estimated yearly energy cost assumes the same Use time (hours per day) every day, the entered Electricity price ($ per kWh), and no dimming or occupancy-sensor savings.

Core lighting math

The calculator first finds the closet floor area from the two inside dimensions.

area_sq_ft = closet_length_ft * closet_width_ft

Next it assigns a target brightness from the selected Brightness goal: Quick storage is 10 foot-candles, Daily closet is 20 foot-candles, Walk-in dressing area is 30 foot-candles, and Color matching or detail work is 50 foot-candles.

target_fc = selected value from {storage: 10, daily: 20, walkin: 30, detail: 50}

Recommended light output adds the optional allowance for dark finishes, deep storage, shadows, aging, and dirt.

recommended_lumens = area_sq_ft * target_fc * (1 + light_allowance_percent / 100)

Fixtures to install is rounded up because you cannot install part of a fixture.

fixture_count = ceiling(recommended_lumens / lumens_per_fixture)

Installed light output is the whole fixture count multiplied by the lumen rating of one fixture.

installed_lumens = fixture_count * lumens_per_fixture

Estimated brightness in the closet applies the same allowance back to the installed lumens so the allowance has one consistent meaning.

estimated_maintained_foot_candles = installed_lumens / area_sq_ft / (1 + light_allowance_percent / 100)

Energy math

Energy outputs are shown only when Watts used by each fixture, Use time (hours per day), and Electricity price ($ per kWh) are entered and valid.

total_watts = fixture_count * fixture_watts

annual_energy_cost = fixture_count * fixture_watts * hours_per_day / 1000 * 365 * electricity_price

Clearance check

If a checkable fixture type and Distance to stored items (inches) are entered, the calculator compares the distance with the built-in clearance value for that fixture type.

clearance_ok = distance_to_storage_in >= required_clearance_in

The clearance values used are 12 inches for surface enclosed LED or incandescent, 6 inches for recessed enclosed LED or incandescent, 6 inches for surface or recessed fluorescent, and 0 inches only when the fixture is listed for closet storage space.

Worked example

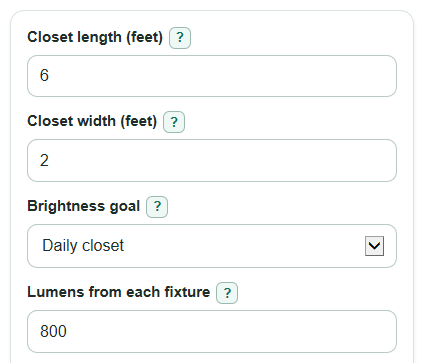

For a 6 foot by 2 foot daily closet with 800 lumens per fixture and a 15 percent extra light allowance, the area is 12 square feet and the target is 20 foot-candles.

recommended_lumens = 12 * 20 * (1 + 15 / 100) = 276

fixture_count = ceiling(276 / 800) = 1

installed_lumens = 1 * 800 = 800

estimated_maintained_foot_candles = 800 / 12 / 1.15 = 57.97

That means one 800 lumen fixture beats the 276 lumen recommendation for that small closet, but placement still matters because a single fixture can leave shelves or corners in shadow.
