Enter your projector, screen, and seat measurements to calculate pixels per degree, viewing angle, and a same-room resolution comparison.
Calculation details
Table of contents

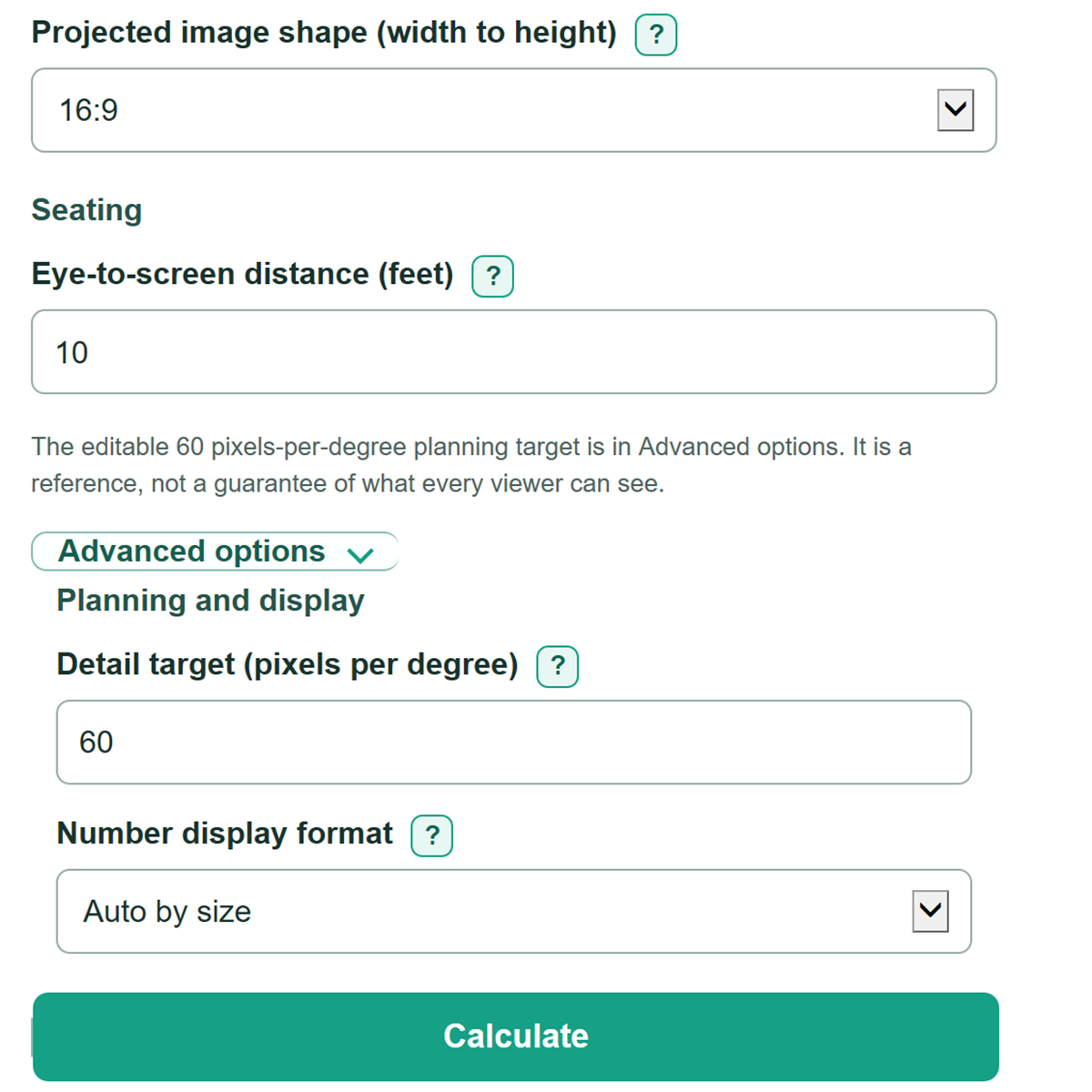

How to use our Projector Pixel Density and Pixels per Degree Calculator
- Choose a Projector resolution preset, or enter the projector's native grid in Horizontal pixels and Vertical pixels.
- Enter the active lit area as Projected image diagonal and choose its Projected image shape. Use the image area, not the outer screen frame.
- Measure from your eyes at the main seat to the screen plane and enter Eye-to-screen distance in feet.
- Click Calculate. Compare the entered projector's horizontal pixels per degree with the 1080p, UHD 4K, and DCI 4K cards, which all use the same screen and seat.
- Sanity-check the Horizontal viewing angle and Projected image width. If they do not match your planned image, recheck the diagonal, image shape, and seating distance.
Definitions
Pixels per degree (PPD): The number of image pixels spread across one degree of your view. It combines resolution, image size, and viewing distance. [1]
Horizontal pixels per degree: Horizontal pixel count divided by the screen's horizontal viewing angle. This is the main comparison for projector resolution at one seat.
Vertical pixels per degree: Vertical pixel count divided by the screen's vertical viewing angle. It can differ from horizontal PPD when the pixel grid and projected image have different shapes.
Projected image pixel density: Pixels per inch (PPI) across the projected image. PPI describes pixel spacing on the screen, without considering where the viewer sits.
Horizontal viewing angle: How wide the projected image appears from the chosen seat, measured in degrees.
Projected image shape: The active image width divided by its height, such as 16:9 or 2.40:1.
Detail target: A user-chosen horizontal PPD benchmark used to calculate the largest screen diagonal at the entered seating distance.
Common mistakes and quick fixes
Mistake: Entering the screen frame size for Projected image diagonal when black masking leaves part of the screen unused.
Fix: Measure or look up the diagonal of the active lit image only.
Mistake: Treating every 4K projector as the same resolution in Projector resolution preset.
Fix: Check the specification. UHD 4K is 3840 x 2160, while DCI 4K is 4096 x 2160.
Mistake: Entering the projector's panel resolution instead of the pixel grid you want to judge in Horizontal pixels and Vertical pixels.
Fix: Use the Native Resolution or Display Resolution value from the manual, then decide separately how pixel shifting should be evaluated.
Mistake: Measuring from the seat back instead of the viewer's eyes for Eye-to-screen distance.
Fix: Measure straight from eye position at the main seat to the screen plane.
Mistake: Reading Projected image pixel density as a measure of sharpness at every seat.
Fix: Use Entered projector horizontal pixels per degree for detail at the entered viewing distance.
Mistake: Treating the Detail target (pixels per degree) as a pass-or-fail rule for every person and every image.
Fix: Use it as a planning reference, and change it or leave it blank if your project uses a different target.
Limitations & Key Assumptions / Boundary Conditions
- The model treats the active projected image as a flat rectangle and uses a straight eye-to-screen distance.
- It assumes the entered pixel grid fills the entered projected image shape. Scaling, masking, letterboxing, unused pixels, and non-square pixel behavior can change the effective result.
- Pixels per degree describes geometric pixel detail. Lens focus, convergence, screen texture, motion, compression, source quality, contrast, eyesight, and room lighting can affect what looks sharp.
- The 1080p, UHD 4K, and DCI 4K comparison changes only horizontal pixel count. It holds the screen size, image shape, and seat distance fixed.
- The largest screen diagonal uses the entered horizontal detail target. It is a planning calculation, not a guarantee of visual acuity or viewing preference.
- Very wide target angles near 180 degrees are outside the finite flat-screen geometry used by the calculation and are rejected.
Methodology
Image geometry
The calculator first converts the entered diagonal and projected image shape into active image width and height. It converts eye-to-screen distance from feet to inches so every geometry measurement uses inches.
image width = diagonal x aspect ratio / sqrt(aspect ratio squared + 1)
image height = diagonal / sqrt(aspect ratio squared + 1)
viewing distance in inches = viewing distance in feet x 12
Viewing angle and detail
For a flat screen, horizontal and vertical viewing angles come from the full angle between the viewer's eyes and both edges of the image. PPD is then the pixel count in a direction divided by the matching viewing angle. PPD is a geometric viewing measure that depends on distance, unlike PPI. [1]
horizontal viewing angle = 2 x atan(image width / (2 x viewing distance)) x 180 / pi
horizontal PPD = horizontal pixels / horizontal viewing angle
vertical PPD = vertical pixels / vertical viewing angle
image PPI = sqrt(horizontal pixels squared + vertical pixels squared) / image diagonal
Resolution comparison and target
The comparison cards divide 1920, 3840, and 4096 horizontal pixels by the same calculated horizontal viewing angle. This isolates the resolution difference without changing the room setup. If a Detail target is entered, the calculator rearranges the horizontal PPD relationship to solve for the largest diagonal that reaches that target.
largest diagonal = 2 x viewing distance x tan((horizontal pixels / target PPD) / (2 x 180 / pi)) x sqrt(aspect ratio squared + 1) / aspect ratio
Worked example
For a 1920 x 1080 projector, a 100-inch 16:9 image, and a 10-foot seat, the image width is about 87.16 inches and the horizontal viewing angle is about 39.92 degrees. Dividing 1920 by 39.92 gives about 48.1 horizontal PPD. At that same screen and seat, 3840 horizontal pixels gives about 96.2 horizontal PPD.
Calculation boundaries
All pixel counts, image diagonal, and viewing distance must be positive. A blank detail target disables the largest-screen calculation. A nonblank target must be positive and must not require a viewing angle of 180 degrees or more.
