Charger setting (amps): The maximum current the EV charger is set to draw continuously.

Breaker size (amps): The amp rating printed on the circuit breaker handle.

Charging voltage (volts): The circuit voltage used by the charger, usually 240 volts for home Level 2, 208 volts at many commercial sites, or 120 volts for Level 1.

Continuous-load rule: The sizing rule that usually treats long-running EV charging as needing extra circuit capacity, commonly 125 percent of the charger current [2].

Recommended breaker size: The next supported standard breaker size that is at least the calculated minimum circuit size.

Charger current limit from breaker: Breaker amps divided by the selected continuous-load factor. Wiring, terminals, charger settings, panel capacity and local requirements can impose lower limits.

Charging power: The estimated electrical power in kilowatts, found from volts times amps divided by 1000.

Largest allowed breaker (amps): An optional cap from a panel load calculation, charger instructions, site limit, or electrician.

Mistake: Entering breaker amps as charger amps. Fix: Use the charger setting in "Charger setting (amps)", or select "Find charger amp limit" and enter "Breaker size (amps)".

Mistake: Assuming Breaker size (amps) can equal the charger amps under the normal rule.
Fix: Use the Standard 125 percent rule under Continuous-load rule unless the whole circuit is listed for 100 percent continuous use.

Mistake: Choosing the wrong Charging voltage (volts), such as 120 volts for a 240-volt Level 2 charger.
Fix: Pick 240 V home Level 2 for most US home installations, 208 V commercial Level 2 for many commercial sites, or 120 V Level 1 for a standard outlet charger.

Mistake: Treating Charging power as guaranteed battery charging speed.
Fix: Read Charging power as electrical input power before vehicle limits, charger losses, temperature effects, and battery tapering.

Mistake: Ignoring Largest allowed breaker (amps) when a panel load calculation or charger manual gives a smaller limit.
Fix: Enter that cap in Largest allowed breaker (amps) and use Best charger setting for your breaker limit if the recommended breaker is too large.

Mistake: Using Recommended breaker size without checking wire, receptacle, panel capacity, and local code.
Fix: Treat Recommended breaker size as planning math and have the full installation checked before work starts.

• This tool sizes the breaker from charger amps, or charger amps from breaker size. It does not size wire, conduit, receptacles, disconnects, grounding, GFCI protection, or panel capacity.
• The standard default uses the 125 percent continuous-load method. Use the 100 percent rated equipment option only when every required part of the circuit is listed for that use.
• Recommended breaker size is rounded to this calculator's supported standard list: 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, and 125 A.
• If the exact installation has voltage drop, long wire runs, shared equipment, utility limits, local amendments, or manufacturer limits, the real design may need a different answer.
• Charging power is an electrical estimate. Actual miles of range per hour depends on the vehicle, onboard charger limit, battery temperature, state of charge, and charging losses.
• A nonstandard Breaker size (amps) can still be used for math in reverse mode, but the actual breaker rating must be verified from listed equipment.
• Results above the supported breaker range are outside this calculator's boundary and should be reviewed by a qualified electrician.

Calculation steps

The calculator first picks a continuous-load factor from Continuous-load rule. Standard mode uses 1.25. The 100 percent rated option uses 1.0 only for equipment listed for that kind of continuous use.

F = 1.25 for the standard rule

F = 1.0 for 100 percent rated equipment only

In find-breaker mode, the calculator multiplies Charger setting (amps) by the factor to get Minimum circuit size before rounding.

minimum_circuit_amps = charger_amps * F

Then it chooses the first supported standard breaker size that is greater than or equal to that minimum.

recommended_breaker_amps = first standard_breaker where standard_breaker >= minimum_circuit_amps

In find-charger mode, the calculator divides Breaker size (amps) by the factor. With the standard rule, this is the same as using 80 percent of the breaker rating.

charger_current_limit_amps = breaker_amps / F

Charging power uses the selected Charging voltage (volts) and the amps used for the current mode.

charging_power_kw = voltage * amps_used / 1000

If Largest allowed breaker (amps) is entered and is lower than Recommended breaker size, the calculator keeps the true recommended breaker visible and also shows the largest charger setting that fits the lower limit.

max_allowed_charger_amps = max_allowed_breaker_amps / F

max_allowed_power_kw = voltage * max_allowed_charger_amps / 1000

Mini-example

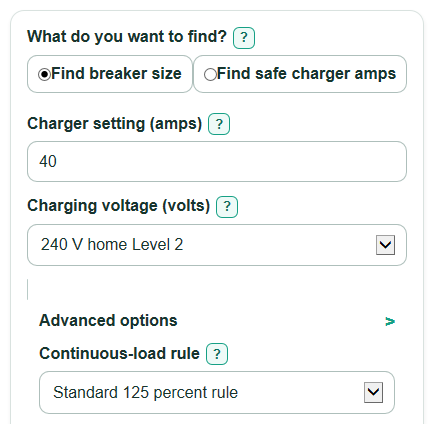

For a 40 A charger at 240 V using the standard factor, the calculation is 40 * 1.25 = 50 A and charging power is 9.6 kW. In reverse, 50 / 1.25 gives a 40 A "Charger current limit from breaker". This checks only the current relationship; final sizing also depends on the charger instructions and full installation.
